P03K | Headset Bearing

£8.99

THE MOST POPULAR 1-1/8" BEARING - CANE CREEK FIT
ALTERNATIVE PART NUMBERS: TH873E, MR122, MR054, MR115, HSS20130K, PT-R401, AC3041 R2
(if out of stock, please see TH873E as FSA direct alternative).

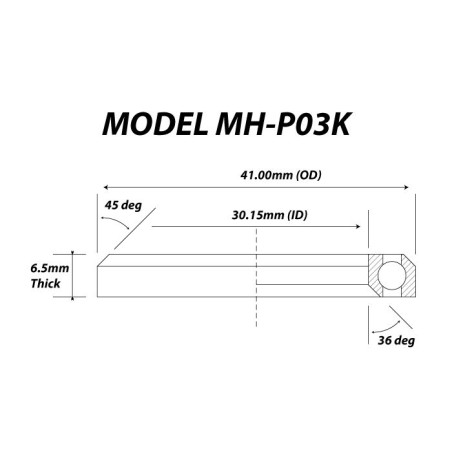

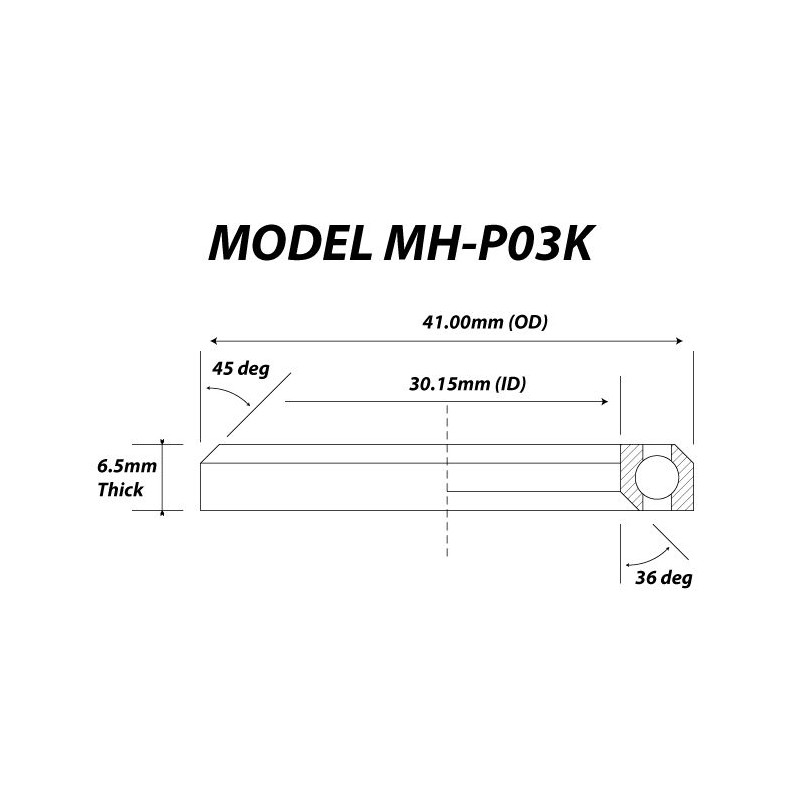

Inner x Outer x Depth (mm): 30.15 x 41 x 6.5
Inch Dia: 1-1/8”
Angle / Chamfer (Deg): 36 / 45
Material: Chromium Steel

Quantity

Not In Stock. Available To Order Normally Dispatched 3-10 Day

Description
Product Details

Inner x Outer x Depth (mm): 30.15 x 41 x 6.5
Inch Dia: 1-1/8”
Angle / Chamfer (Deg): 36 / 45
Bearing ID: 30.15mm
Bearing OD: 41.0mm
Bearing Thickness: 6.5mm
Internal Angle: 36 Degrees
External Angle: 45 Degrees
Material: Bearing Steel
Grease: Mobil XHP-222 or SINOPEC HTHS Bearing Grease
Seal: Double-sealed 2RS
Material: Chrome Steel 100Cr6 (Race & Balls)
Cage Material: Nylon PA66

Note, the image shows a Bearing with a Black Oxide coating which provides enhanced corrosion resistance. This is now our first choice stock for this size, but if supply becomes a problem, note we may supply this in a silver, non-coated finish.

Some Headsets that use this bearing:
Cane Creek S-3
Cane Creek S-3 Plus 5
Cane Creek IS-3
Cane Creek ZS-3
Cane Creek IS-2
Cane Creek ZS-2
FSA Orbit Z Series
FSA Orbit Z 1.5R (Reducer)
FSA 1 (Upper)
FSA DX (Upper)
